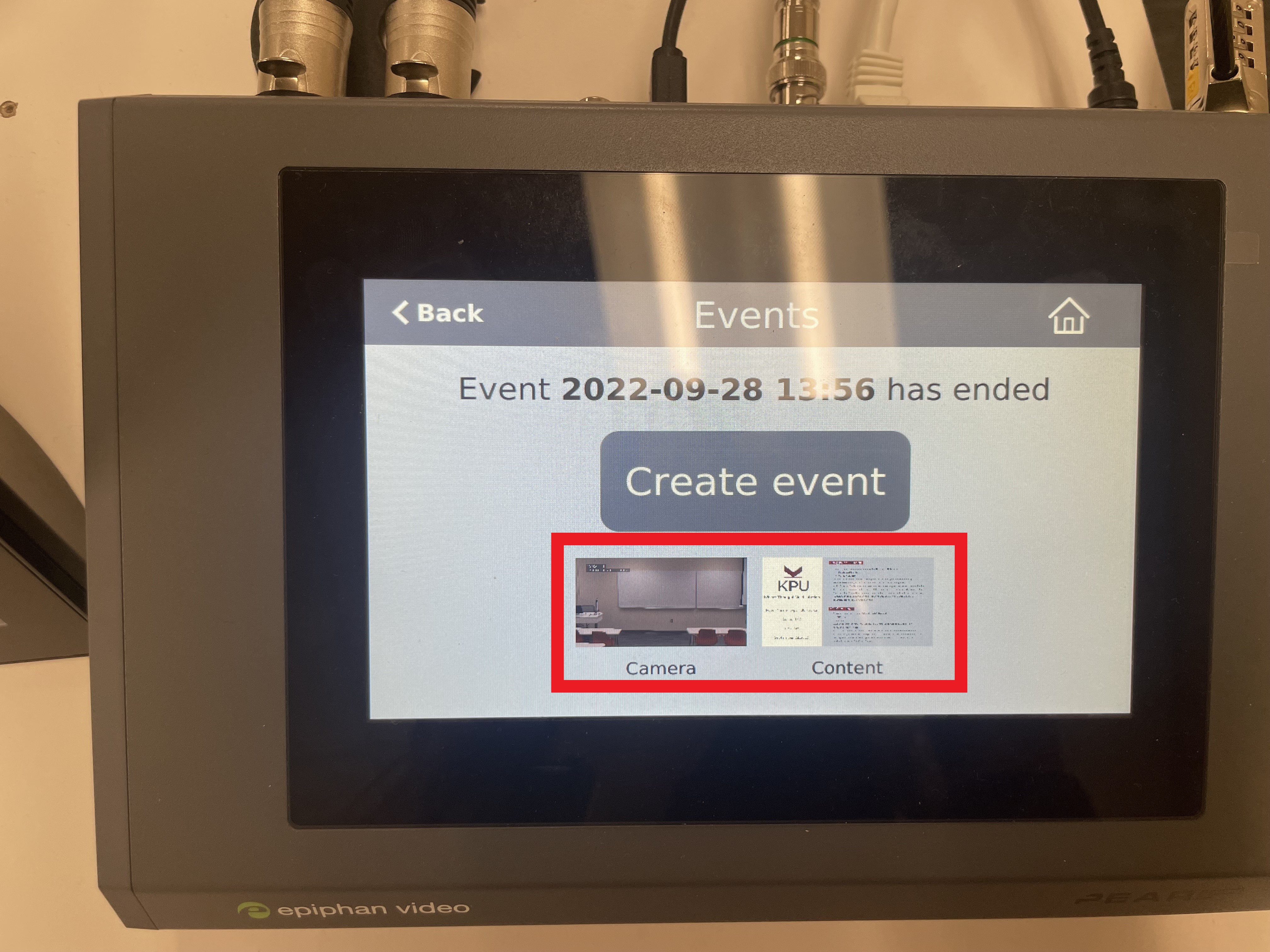

You will see "Camera" and "Content" on the screen. This is what's being recorded.
Camera: It displays anything that’s recording through the camera at the back of the room.
Content: It displays what’s being shown to the class. This could be either a Doc cam, HDMI cable, or wireless and Doc. Please note that camera and content will both be recorded.

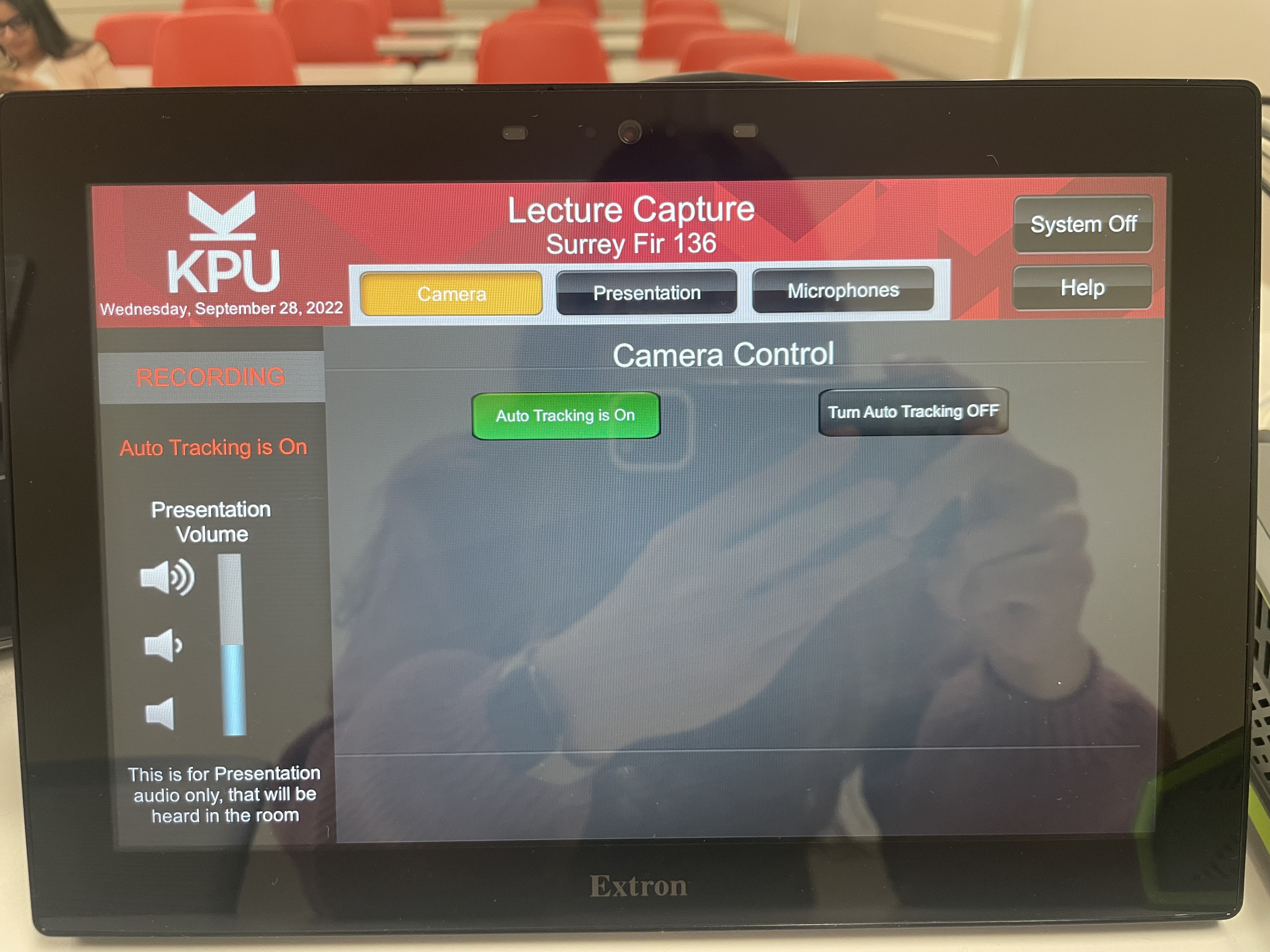

Camera (Auto-tracking)
Auto-tracking is on by default. The camera at the back of the room will automatically follow the instructor. If you wish not to use the auto-tracking, please touch “Auto-tracking off” on the Extron controller.

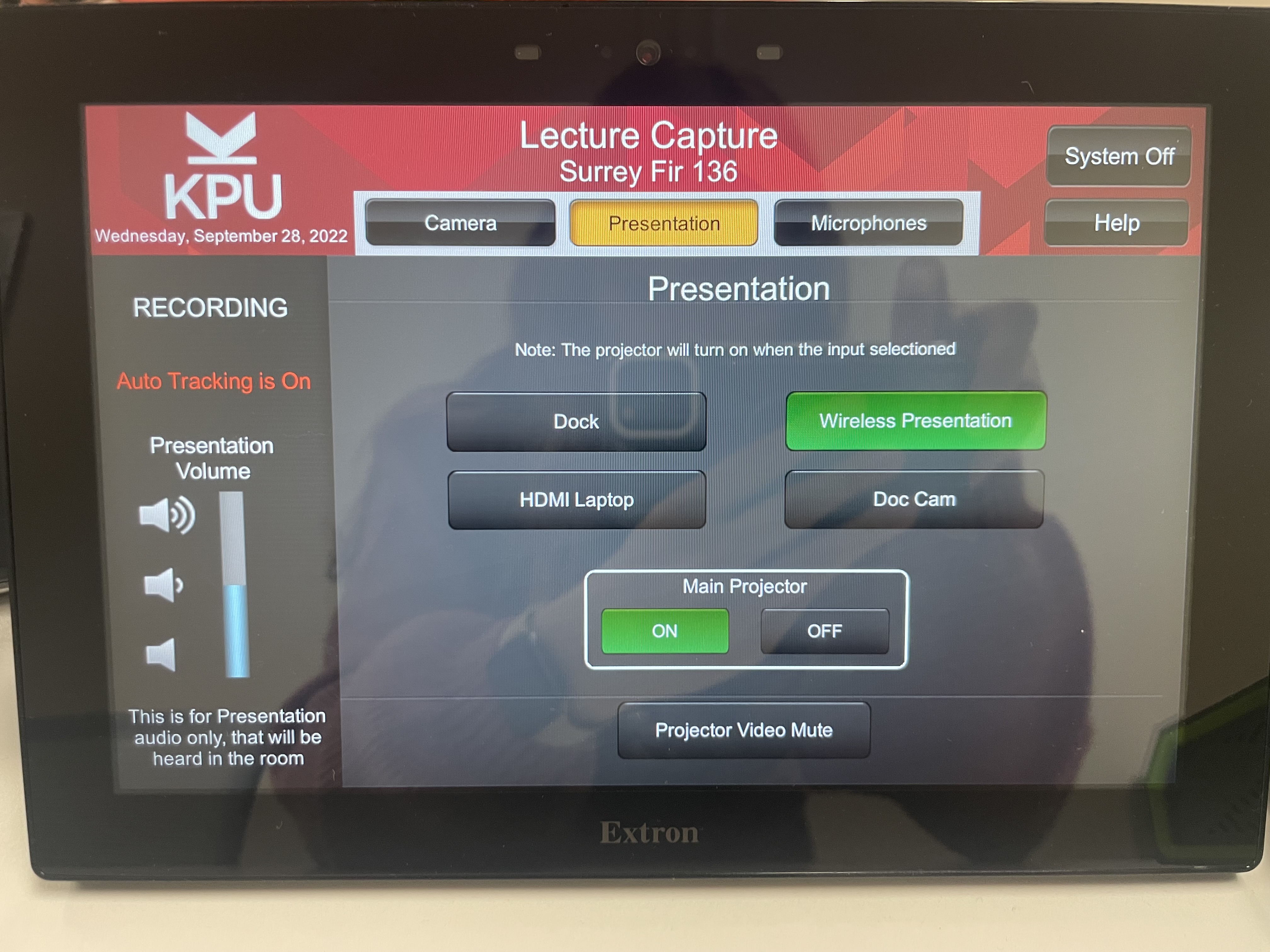

Content (Presentation)
You have options to display Dock, Wireless Presentation, HDMI Laptop and Doc Cam. Please click "On" to turn on the projector.
How to use the classroom technologies:

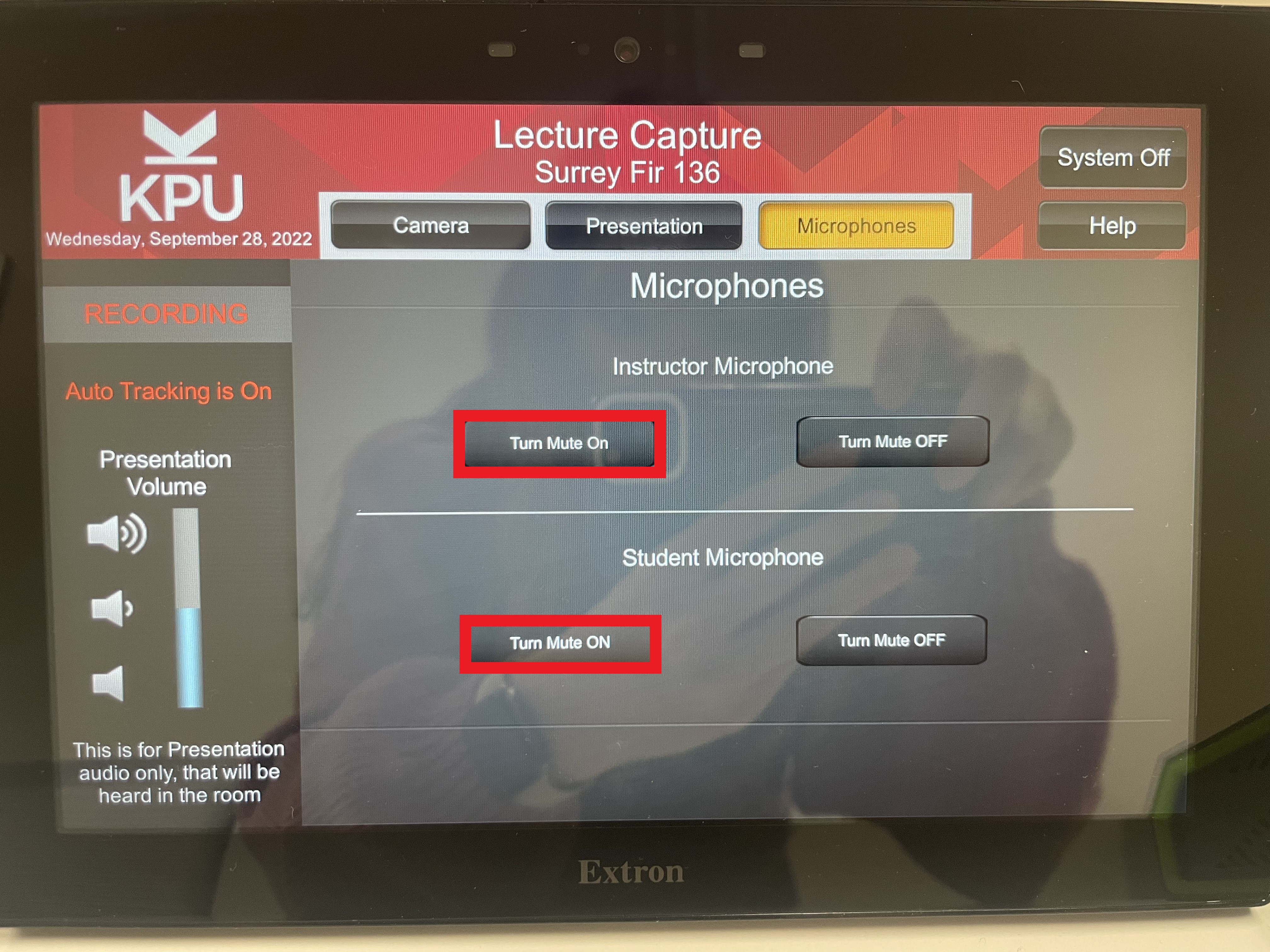

Microphones
Microphones are defaulted to be on. You have option to turn them on and off. Please click "Turn Mute On" to mute the microphone. Please note the microphones in these rooms are sensitive and will pick up ambient noise. We suggest having a one person speak at a time rule and minimizing side conversations which could get picked up and recorded.

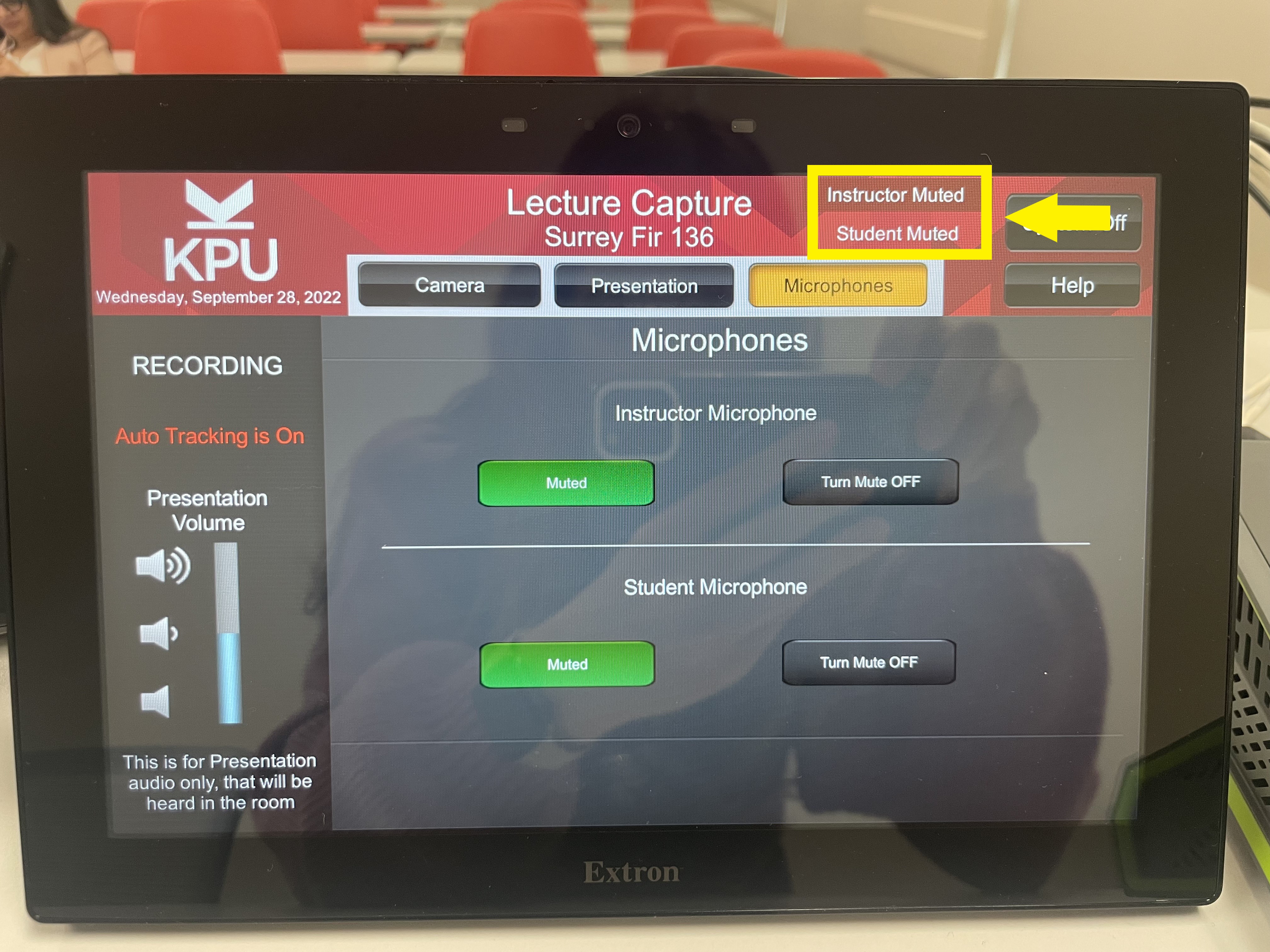

The Extron controller will show if the microphone is muted on the top right corner.
This work by Kwantlen Polytechnic University (KPU) is licensed under a Creative Commons Attribution-NonCommercial 4.0 International License.
